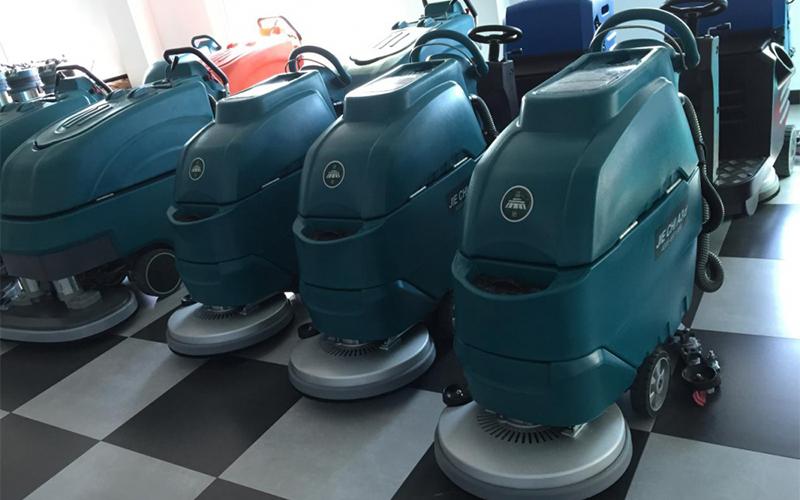

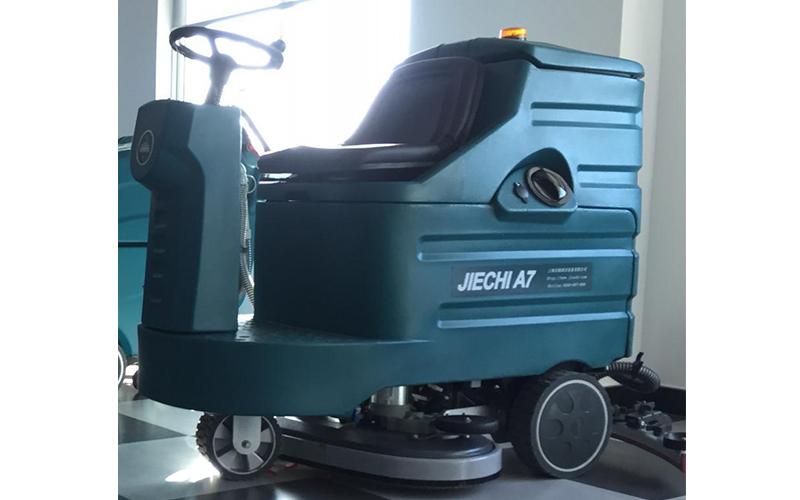

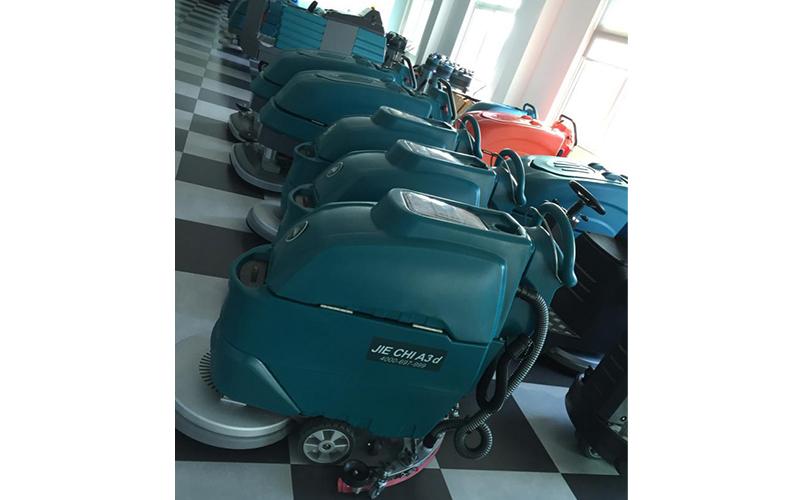

We provide customized service for automatic floor scrubbers that are equipped with skid resistance polyurethane driving wheels, thus meeting the needs for cleaning equipment installation in different environments and locations.
Polyurethane solid wheels can be used on ground that is either smooth, or slippery due to oil, such as marble tile or epoxy flooring. The wheel tread and aluminum alloy steel rim are produced here at Yulin, and can also be customized as per customer requirements and actual usage processes. We continuously update existing product and develop new ones, so that no matter the requirements for hardness, wear resistance, resilience, compression deformation, comfort or skid requirements, we have everything a client needs.
Driven wheels
Dia:200 x 60 flat(obverse side
Dia: 200- x 60 flat(reverse side)

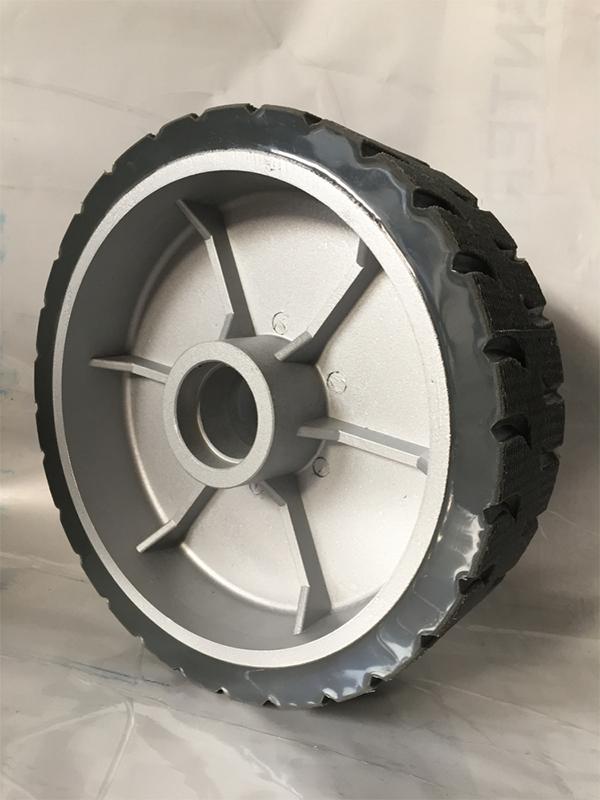

Dia:256 x 80-47holes S grain (obverse side)
Dia:256 x 80-47holes S grain (reverse side)

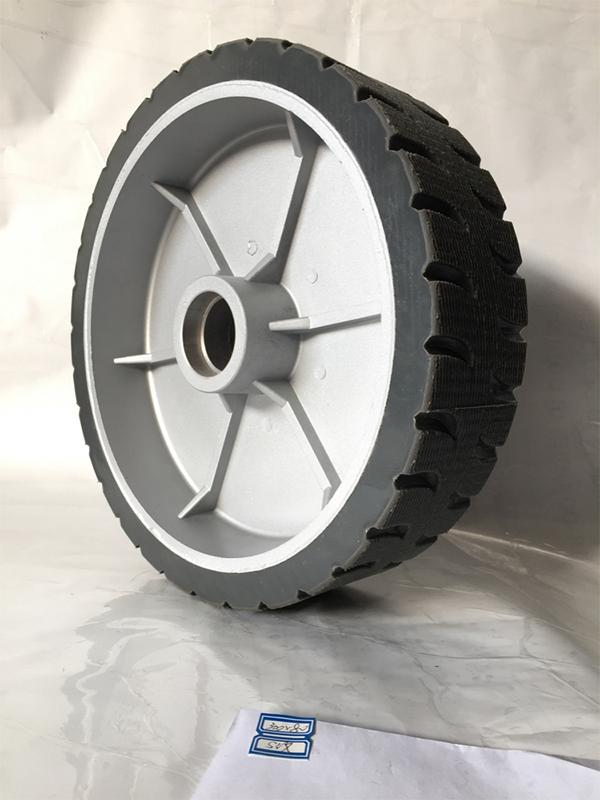

Dia:300 x 80-47 S grain (obverse side)

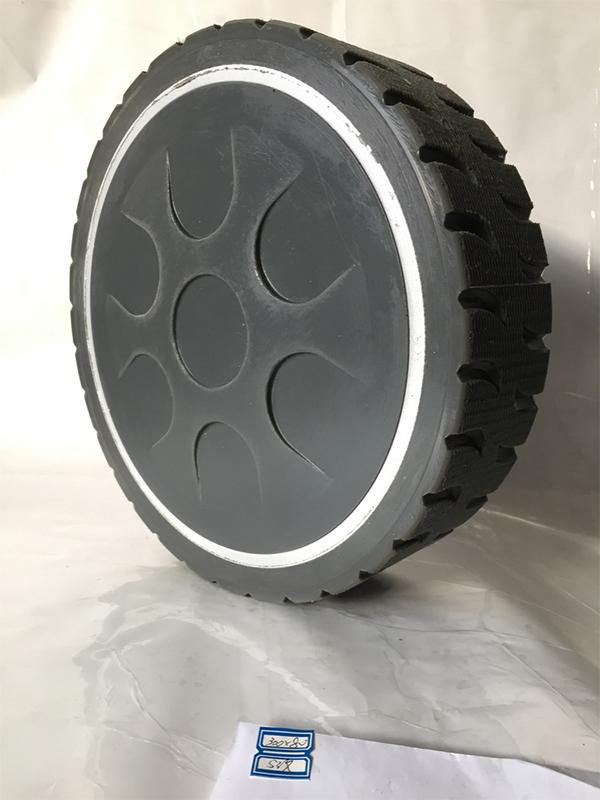

Dia:300 x 80-47 S grain-(reverse side)

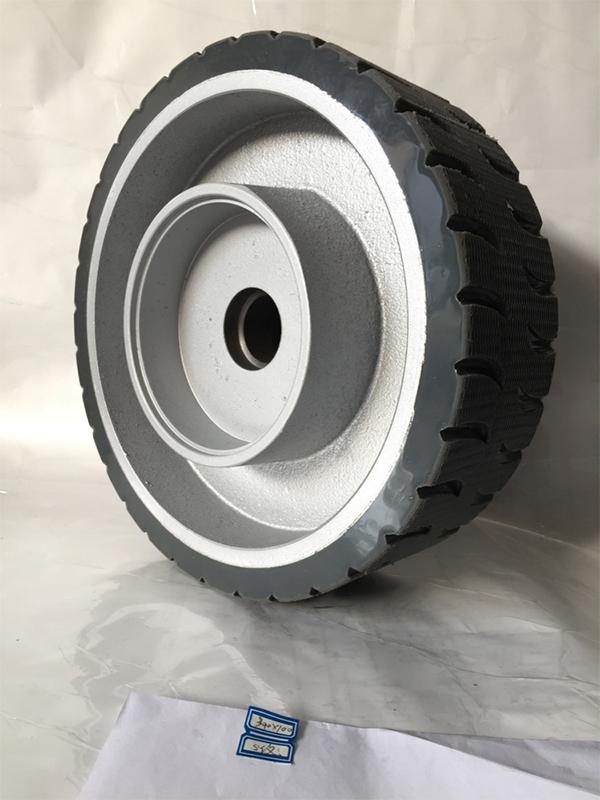

Dia:300 x 100 S grain (obverse side)
Dia:300 x 100S grain (reverse side)

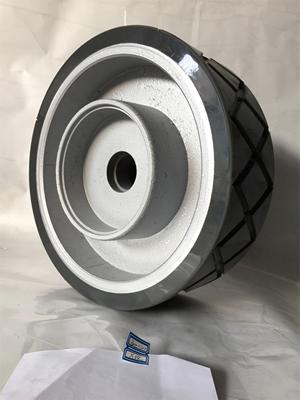

Dia:300 x 100 X grain (obverse side)

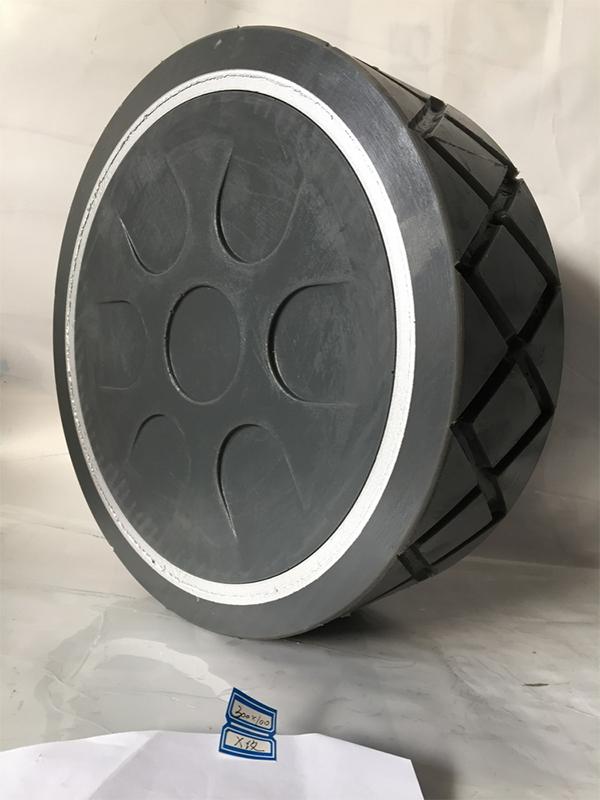

Dia: 300 x 100 X grain(reverse side).
Dia:200 x 50S grain(reverse side)
Dia:200 x 50 S grain (obverse side)
Dia:200 x 50 smooth (reverse side)
Dia: 200 x 50 smooth-(obverse side)
Dia:220 x 50-47 straight grain(obverse side)
Driving wheels

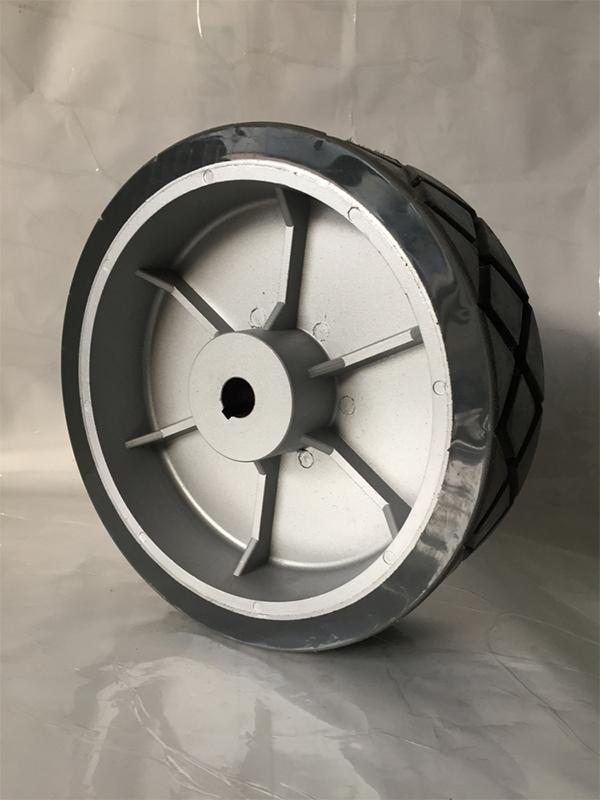

Dia:256 x 80-20holes X grain(obverse side)
Dia:256 x 80-20holes X grain(reverse side)

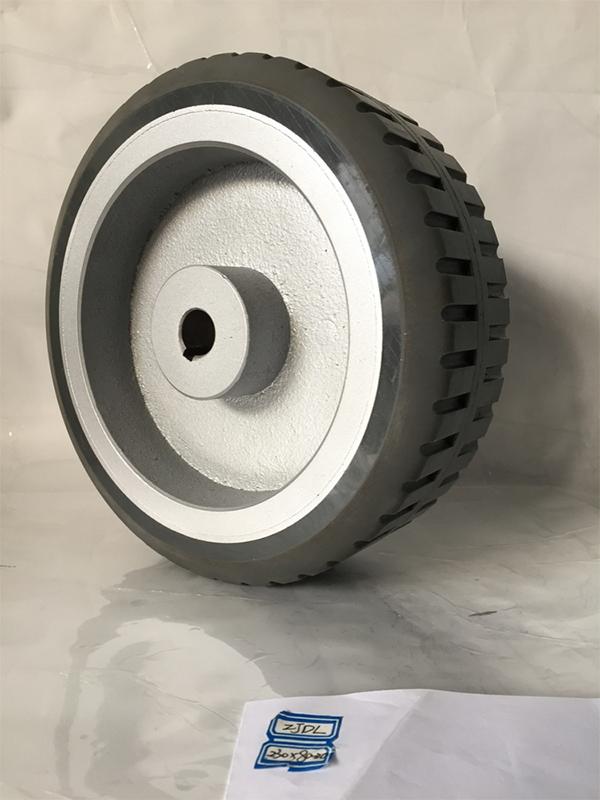

Dia:300 x 80-20holes S grain(reverse side)
Dia:300- x 80-20holes S grain(obverse side)
Dia:256 x 80-19holes S grain(reverse side)
Dia:256 x 80-19holes S grain (obverse side)
Dia:200 x 50-19holes Sgrain
Dia:230 x 80
Size choices:
Name of product
D (Diameter, mm)
H (Height, mm)
d1 (Hole diameter, mm)
d2 (Depth, mm)
Keyway
Driven wheel
381
127
Driven wheel
312
100
72
17
Driven wheel
300
100
47
12
Driven wheel
300
80
52
15
Driven wheel
300
80
47
14
Driving wheel
300
80
25
6*6
Driving wheel
300
80
20
6*6
Driven wheel
256
80
52
15
Driven wheel
256
80
47
14
Driving wheel
256
80
20
6*6
Driving wheel
256
80
19
6*6
Driving wheel
254
76
204/176
Driving wheel
225
64
Driving wheel
230
70/80
20/25
6*6
Driven wheel
220
50
47
14
Driven wheel
200
60
47
14
Driven wheel
200
50/55
47
57/22
Driven wheel
200
50/55
47
26/15
Driving wheel
200
50/52.5
19.5
6*6
Driving wheel
200
50
22
6*6
Driving wheel
200
50
20
6*6
Driving wheel
200
50
20
5*5
Driving wheel
200
50
19
6*6
Driving wheel
200
50
19
5*5
Driven wheel
175
50/55
47
22/27
Driving wheel
175
50
20
5*5
Besides the automatic floor scrubber wheel, Yulin has the abilities to manufacture polyurethane tyred wheels for electric forklift truck wheel and automated guided vehicle wheel. Yulin has been a leading polyurethane wheel manufacturer since 1998, offers all kinds of polyurethane tyred wheels with custom service.
